Rifle Mag Loaders

AR15 / M4 30rd Range BenchLoader® loader 5.56 / .223

Heavy-duty loader for loading AR15 /M4 magazines in a single hand stroke


Designed to load hundreds of magazine per day

p/n: BL71B    NSN: 1005310173431  CAGE: 2899A


  • icon
    Durable reinforced polymer
  • icon
    Eliminates thumb pain & injury
  • icon
    Eliminates wear on feed lips
  • icon
    Prolongs magazine life
  • icon
    Reliable in all weather
  • icon
    Simple to use

Meet our Range BenchLoader®

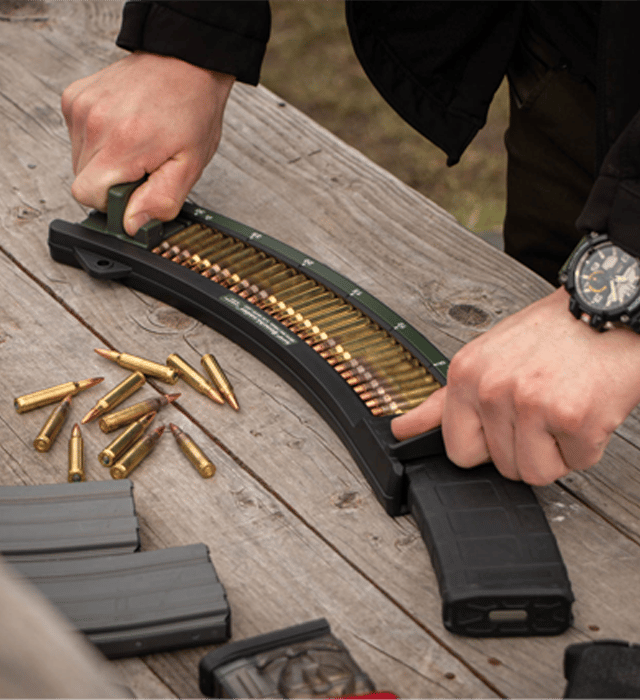

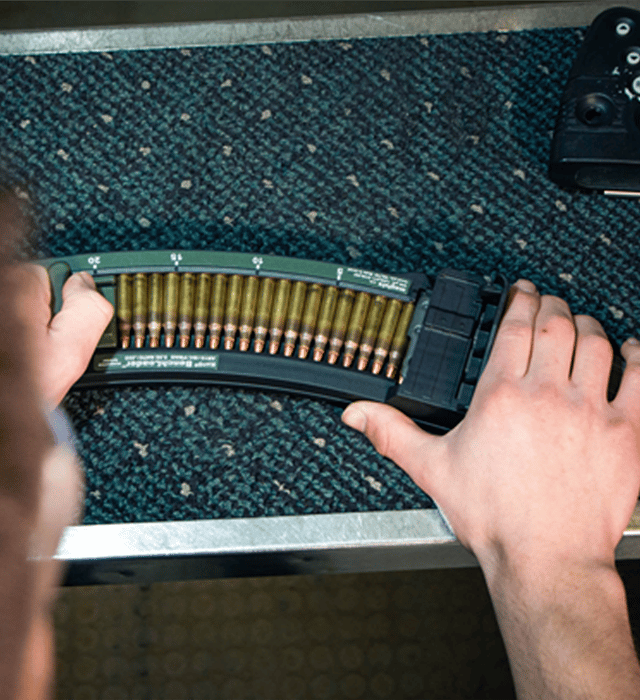

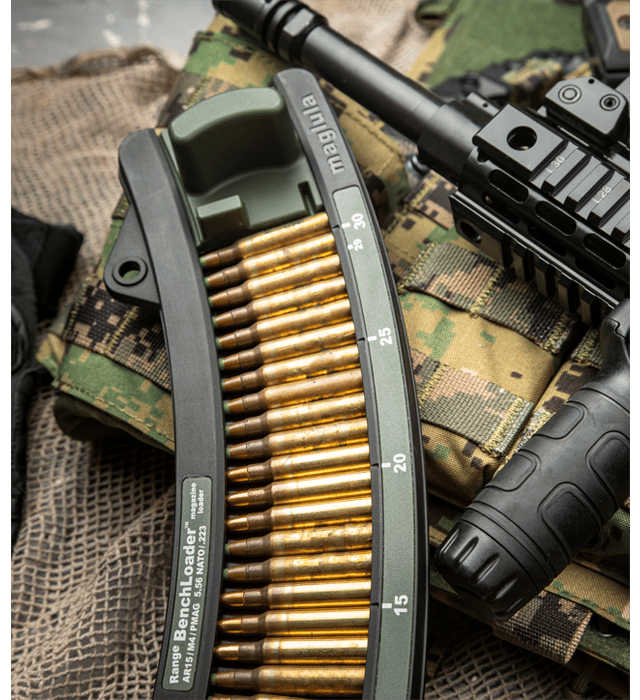

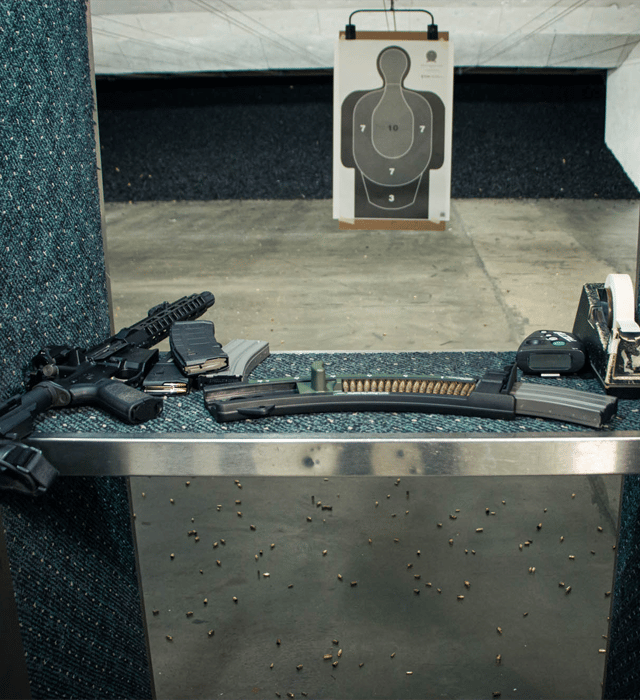

The Range BenchLoader® loader is heavy-duty industrial 5.56 x 45 / .223 cal magazine loader made to load a magazine in a single hand stroke. It is intended for the daily loading of hundreds of magazines at shooting ranges and armories. It totally eliminates finger pain and injury, shortens loading time, and keeps the magazine’s lips intact.



• Competition shooters
• Shooting ranges
• Military & LE armories
• Ammunition & firearm manufacturers

Made for heavy shooters

With the Range BenchLoader® loader, the daily loading of hundreds of magazines is now a breeze. It’s fun and easy to load with. The loaders are durable, lightweight, and compact to be carried around with ease.

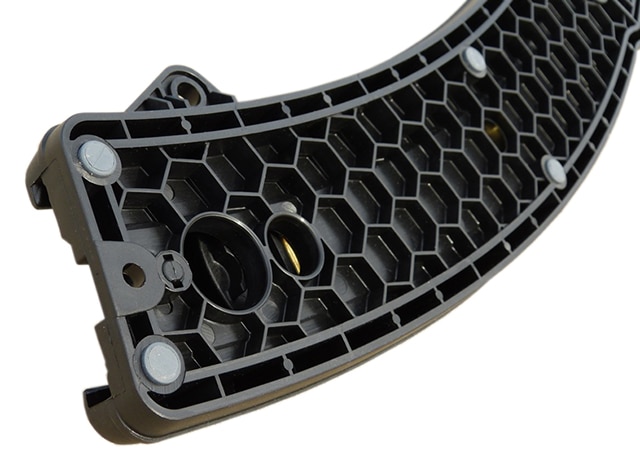

The loaders are made tough and durable thanks to a detailed robust design using high-quality materials. Injection molded N12 polymer 33% glass-filled compound with UV stabilization is used for the Body and Slide. A 54HRC hardened steel is used for the magazine catch tooth. The loaders were tested for Slide against Body wear, and were tested for dimensional stability at high and low temperatures. Six rubber feet attribute to positive retention on bench or table when loading.

Fits and loads all* AR15 / M4 compatible 5.56 x 45 / .223 magazines using no inserts or adjustments. Loads:


  • AR15 / M4 USGI (NATO STANAG 4179)
  • Magpul PMAGs
  • H&K metal 416 / SA80
  • SureFire 60 & 100 rd
  • Beretta AR 70-90
  • Lancer
  • Hexmags
  • Other metal and polymer mags.

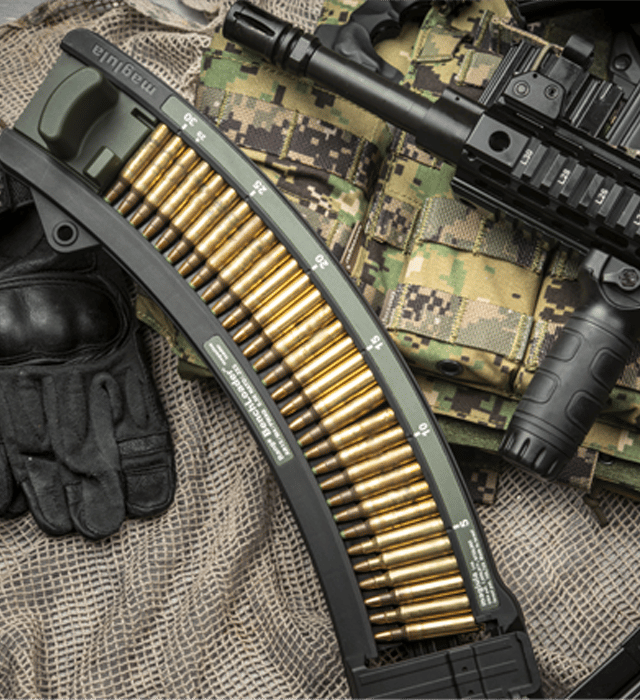

  • Smoothly loads 1 to 30 loose rounds in a single stroke.
  • 25 seconds loading 30rd magazines.
  • Absolutely painless operation!
  • Keeps the magazine lips intact.
  • Allows inspection for defects and cleaning of rounds prior to loading.
  • Rugged construction.
  • Comprising only one moving part.
  • No inserts or adjustments are required loading different mags.
  • Safe on fingers and magazine.
  • Filling of rounds is done with both hands, therefore quicker loading.
  • Needs no dexterity or training to use.
  • Needs virtually no maintenance or cleaning.
  • Easy to operate with gloves in freezing weather.
  • Chemicals resistant.
  • Portable, Range Bag packable; length 42cm (16.5”), weights 360gr (12.7 oz.)
  • Six rubber feet provide positive retention when loading.


  • Although it hasn’t been designed for it, users confirm that the Range Benchloader works well with 300 Blackout, except Sig Sauer’s .300 Elite Ball rounds.
  • Does not load blank rounds and may not load rounds with irregular bullets.
  • Drum mags were not tested!

Related products:

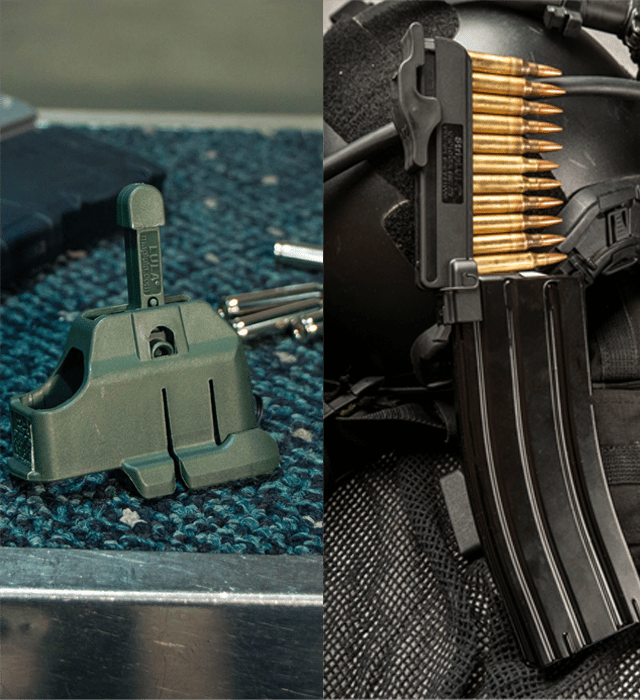

LULA® loader & unloader – A AR15 / M4 single-round loader & unloader for using with all metal and polymer 5.56mm /.223 magazines, including PMAGs and Lancer. For more information, click here.


StripLULA® loader & unloader – A AR15 / M4 10-round loader & unloader for using with all metal and polymer 5.56mm /.223 magazines, including PMAGs and Lancer. For more information, click here.

Major USA Dealers for this product

Intellectual Property:

BenchLoader is a registered trademark: U.S. PTO #5,315,117 and #5,321,135; EUIPO #1418205; Russia #1418205; China #23328958

U.S. Patent 7,059,077; Israeli Patent 160,729

U.S. Design patent D728,065S
